Artificial Neural Networks (ANN)¶

🧠 Overview¶

Artificial Neural Networks are powerful machine learning models inspired by biological neural networks. They can capture complex, non-linear relationships in hydrological data that traditional regression methods might miss.

🏗️ Network Architecture¶

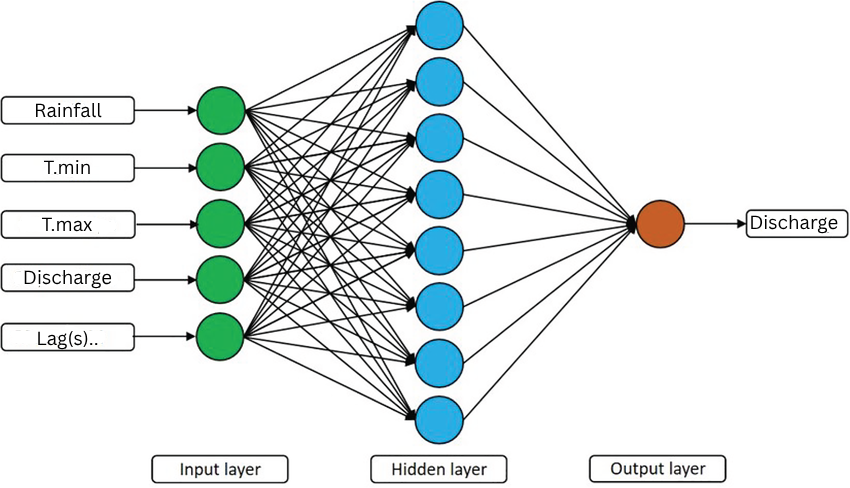

ANN Architecture

Mathematical Foundation¶

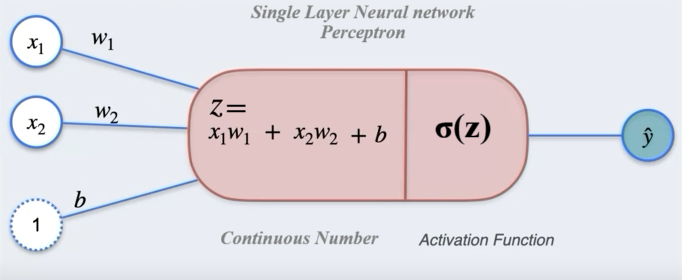

ANN Equations

The basic neuron computation: $$y = f\left(\sum_{i=1}^{n} w_i x_i + b\right)$$

Where: - $x_i$ = Input features - $w_i$ = Weights - $b$ = Bias - $f$ = Activation function

🔨 Implementation¶

Step 1: Import Libraries¶

import pandas as pd
import numpy as np
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
import tensorflow as tf
from tensorflow import keras
from keras import Sequential
from keras.layers import Dense, Dropout
from keras.optimizers import Adam
from keras import backend as K
import matplotlib.pyplot as plt
import warnings

warnings.filterwarnings('ignore')
np.random.seed(42)
tf.random.set_seed(42)

Step 2: Data Preparation¶

📥 Before you begin: Download the discharge dataset here: Runoff_Data.csv

# Load data
df = pd.read_csv('Runoff_Data.csv',
                 parse_dates=['Date'],
                 index_col='Date')
# Feature engineering (same as MLR)
INPUTS = df.iloc[:, :-1]
OUTPUT = df.iloc[:, -1]

# Create lag features
rain_lags = [1, 2, 3]
tmax_lags = [1, 2, 3]
tmin_lags = [1, 2, 3]

for lag in rain_lags:
    INPUTS[f'Rainfall_lag{lag}'] = INPUTS['Rainfall'].shift(lag)
for lag in tmax_lags:
    INPUTS[f'Tmax_lag{lag}'] = INPUTS['Tmax'].shift(lag)
for lag in tmin_lags:
    INPUTS[f'Tmin_lag{lag}'] = INPUTS['Tmin'].shift(lag)

# Clean data
FEATURES = INPUTS.dropna()
TARGET = OUTPUT.loc[FEATURES.index]

Step 3: Feature Scaling¶

# Scale features
X_scaler = StandardScaler()
X_scaled = X_scaler.fit_transform(FEATURES)

# Scale target
y_scaler = StandardScaler()
y_scaled = y_scaler.fit_transform(TARGET.values.reshape(-1, 1)).flatten()

print("Scaling complete!")
print(f"Features mean: {X_scaled.mean():.4f}, std: {X_scaled.std():.4f}")
print(f"Target mean: {y_scaled.mean():.4f}, std: {y_scaled.std():.4f}")

Step 4: Train-Test Split¶

X_train_scaled, X_test_scaled, y_train_scaled, y_test_scaled = train_test_split(
    X_scaled, y_scaled,
    test_size=0.2,
    shuffle=False
)

print(f"Training samples: {len(X_train_scaled)}")
print(f"Testing samples: {len(X_test_scaled)}")

Step 5: Define Hyperparameters¶

# Model architecture
INPUT_DIM = X_train_scaled.shape[1]
HIDDEN_LAYERS = [32, 16]
DROPOUTS = [0.3, 0.2]
ACTIVATION = 'relu'

# Training parameters
OPTIMIZER = 'adam'
LEARNING_RATE = 0.001
EPOCHS = 100
BATCH_SIZE = 32

print(f"Input dimension: {INPUT_DIM}")
print(f"Hidden layers: {HIDDEN_LAYERS}")
print(f"Activation: {ACTIVATION}")

Step 6: Build the Model¶

# Clear any existing models
K.clear_session()

# Build model
model = Sequential()

# First hidden layer with input
model.add(Dense(HIDDEN_LAYERS[0],
                input_dim=INPUT_DIM,
                activation=ACTIVATION))
model.add(Dropout(DROPOUTS[0]))

# Additional hidden layers
for i, units in enumerate(HIDDEN_LAYERS[1:], 1):
    model.add(Dense(units, activation=ACTIVATION))
    if i < len(DROPOUTS):
        model.add(Dropout(DROPOUTS[i]))

# Output layer
model.add(Dense(1))  # No activation for regression

# Compile model
optimizer = Adam(learning_rate=LEARNING_RATE)
model.compile(optimizer=optimizer, loss='mse', metrics=['mae'])

# Model summary
model.summary()

Step 7: Train the Model¶

# Train with early stopping
from keras.callbacks import EarlyStopping

early_stop = EarlyStopping(
    monitor='loss',
    patience=10,
    restore_best_weights=True
)

history = model.fit(
    X_train_scaled, y_train_scaled,
    epochs=EPOCHS,
    batch_size=BATCH_SIZE,
    validation_split=0.1,
    callbacks=[early_stop],
    verbose=1
)

Step 8: Make Predictions¶

# Predict on test set
y_pred_scaled = model.predict(X_test_scaled)

# Inverse transform to original scale
y_pred = y_scaler.inverse_transform(y_pred_scaled)
y_true = y_scaler.inverse_transform(y_test_scaled.reshape(-1, 1))

print(f"Predictions shape: {y_pred.shape}")

📈 Model Evaluation¶

# Evaluate performance
def evaluate_model(obs, sim):
    obs = np.array(obs).flatten()
    sim = np.array(sim).flatten()

    r = np.corrcoef(obs, sim)[0, 1]
    r2 = r ** 2
    nse = 1 - np.sum((obs - sim) ** 2) / np.sum((obs - np.mean(obs)) ** 2)
    pbias = 100 * np.sum(obs - sim) / np.sum(obs)

    return {'R²': r2, 'NSE': nse, 'PBIAS': pbias}

results = evaluate_model(y_true, y_pred)
print(f"Test Performance:")
print(f"  R² = {results['R²']:.4f}")
print(f"  NSE = {results['NSE']:.4f}")
print(f"  PBIAS = {results['PBIAS']:.2f}%")

📊 Visualizations¶

Training History¶

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

# Loss
axes[0].plot(history.history['loss'], label='Training Loss')
if 'val_loss' in history.history:
    axes[0].plot(history.history['val_loss'], label='Validation Loss')
axes[0].set_xlabel('Epoch')
axes[0].set_ylabel('Loss (MSE)')
axes[0].set_title('Model Loss During Training')
axes[0].legend()
axes[0].grid(True, alpha=0.3)

# MAE
axes[1].plot(history.history['mae'], label='Training MAE')
if 'val_mae' in history.history:
    axes[1].plot(history.history['val_mae'], label='Validation MAE')
axes[1].set_xlabel('Epoch')
axes[1].set_ylabel('MAE')
axes[1].set_title('Mean Absolute Error During Training')
axes[1].legend()
axes[1].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Predictions vs Observations¶

plt.figure(figsize=(14, 6))

# Time series plot
test_dates = TARGET.iloc[-len(y_true):].index
plt.plot(test_dates, y_true, 'b-', label='Observed', alpha=0.7)
plt.plot(test_dates, y_pred, 'r-', label='ANN Predicted', alpha=0.7)

plt.xlabel('Date')
plt.ylabel('Discharge (m³/s)')
plt.title('ANN: Observed vs Predicted Discharge')
plt.legend()
plt.grid(True, alpha=0.3)
plt.xticks(rotation=45)
plt.tight_layout()
plt.show()

🎛️ Hyperparameter Tuning¶

Grid Search Example¶

def create_model(hidden_layers, activation, learning_rate):
    K.clear_session()
    model = Sequential()

    # First layer
    model.add(Dense(hidden_layers[0],
                   input_dim=INPUT_DIM,
                   activation=activation))
    model.add(Dropout(0.2))

    # Additional layers
    for units in hidden_layers[1:]:
        model.add(Dense(units, activation=activation))
        model.add(Dropout(0.2))

    # Output
    model.add(Dense(1))

    # Compile
    optimizer = Adam(learning_rate=learning_rate)
    model.compile(optimizer=optimizer, loss='mse')

    return model

# Define hyperparameter grid
param_grid = {
    'hidden_layers': [[32, 16], [64, 32], [128, 64, 32]],
    'activation': ['relu', 'tanh'],
    'learning_rate': [0.001, 0.01, 0.0001]
}

# Note: Full grid search implementation would go here

🎯 Activation Functions¶

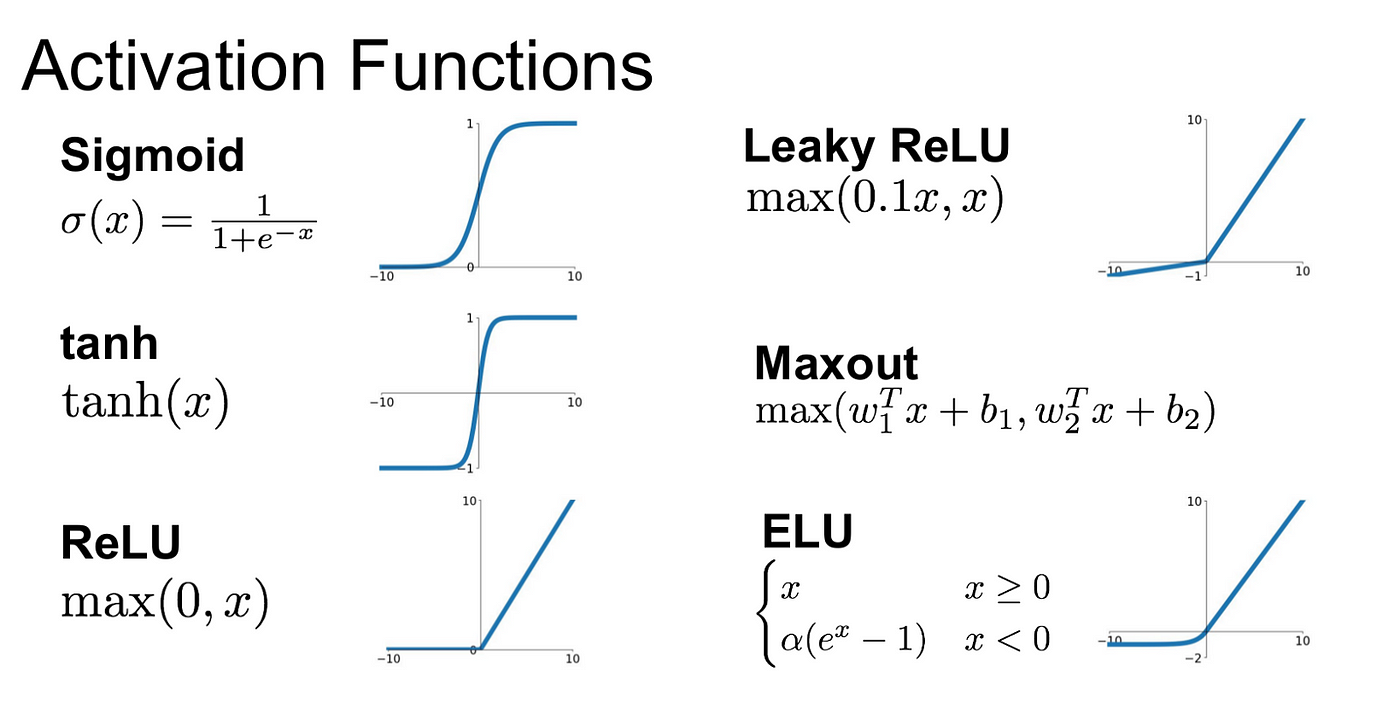

Activation Functions

Common Activation Functions¶

Function	Formula	Range	Use Case
ReLU	$f(x) = max(0, x)$	[0, ∞)	Hidden layers (default)
Tanh	$f(x) = tanh(x)$	[-1, 1]	Hidden layers (centered)
Sigmoid	$f(x) = 1/(1 + e^{-x})$	[0, 1]	Binary classification
Linear	$f(x) = x$	(-∞, ∞)	Regression output

📚 Learning Rate Impact¶

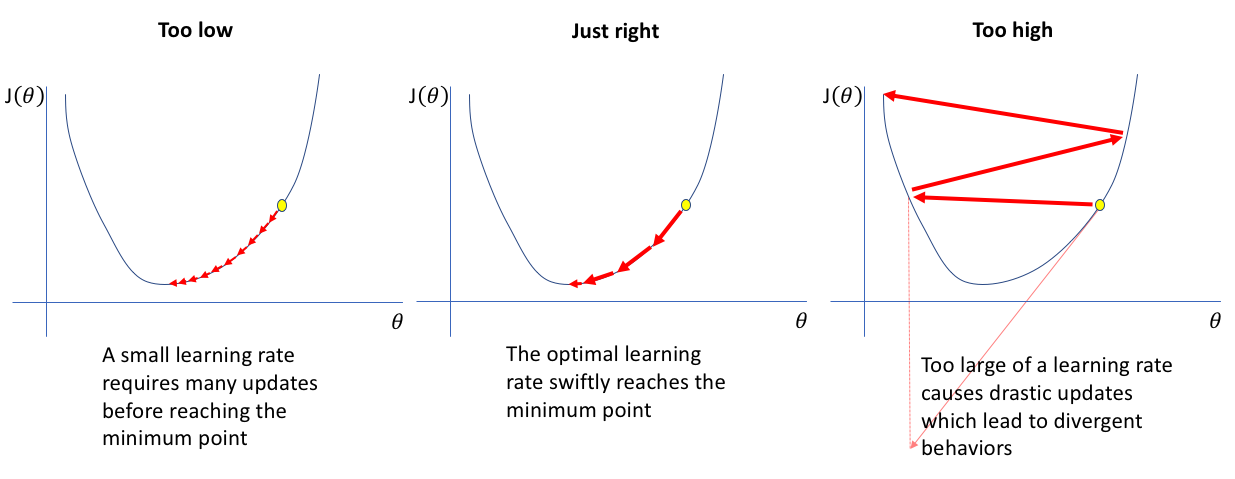

Learning Rate

✅ Best Practices¶

Always scale inputs: Neural networks are sensitive to input scale
Start simple: Begin with fewer layers and neurons
Monitor overfitting: Use validation data and early stopping
Experiment with architectures: Try different layer configurations
Use dropout: Prevents overfitting by randomly dropping neurons
Set random seeds: For reproducible results
Save best models: Use callbacks to save the best performing model

⚠️ Common Issues and Solutions¶

Issue	Symptom	Solution
Overfitting	Train loss << Test loss	Add dropout, reduce layers, early stopping
Underfitting	Poor performance overall	Add layers/neurons, train longer
Exploding gradients	Loss becomes NaN	Reduce learning rate, use gradient clipping
Slow convergence	Loss decreases slowly	Increase learning rate, change optimizer
Unstable training	Loss fluctuates wildly	Reduce learning rate, increase batch size

🔄 Model Comparison¶

# Compare all three models
comparison = pd.DataFrame({
    'Model': ['SLR', 'MLR', 'ANN'],
    'R²': [0.65, 0.78, results['R²']],
    'NSE': [0.60, 0.75, results['NSE']],
    'PBIAS': [5.2, 2.1, results['PBIAS']],
    'Training Time': ['<1s', '<1s', '~30s'],
    'Interpretability': ['High', 'High', 'Low'],
    'Complexity': ['Low', 'Medium', 'High']
})

print("Model Comparison:")
print(comparison.to_string(index=False))

🚀 Advanced Techniques¶

1. LSTM for Time Series¶

See the dedicated page: LSTM (Time Series)

2. Ensemble Methods¶

# Combine predictions from multiple models
ensemble_pred = (mlr_pred + ann_pred) / 2

3. Hyperparameter Optimization with Keras Tuner¶

# pip install keras-tuner
import keras_tuner as kt

def build_model(hp):
    model = Sequential()

    # Tune the number of layers and neurons
    for i in range(hp.Int('n_layers', 2, 4)):
        model.add(Dense(
            hp.Int(f'units_{i}', 16, 128, step=16),
            activation='relu'
        ))
        model.add(Dropout(hp.Float(f'dropout_{i}', 0, 0.5, step=0.1)))

    model.add(Dense(1))

    model.compile(
        optimizer=Adam(hp.Float('learning_rate', 1e-4, 1e-2, sampling='LOG')),
        loss='mse'
    )

    return model

📊 Final Comparison Visualization¶

# Create comprehensive comparison plot
fig, axes = plt.subplots(2, 2, figsize=(15, 12))

models = {
    'SLR': {'pred': slr_pred, 'color': 'green'},
    'MLR': {'pred': mlr_pred, 'color': 'blue'},
    'ANN': {'pred': y_pred.flatten(), 'color': 'red'}
}

# 1. All models time series
ax = axes[0, 0]
ax.plot(test_dates, y_true, 'k-', label='Observed', linewidth=2, alpha=0.7)
for name, data in models.items():
    ax.plot(test_dates[:len(data['pred'])], data['pred'],
           color=data['color'], label=name, alpha=0.7)
ax.set_xlabel('Date')
ax.set_ylabel('Discharge (m³/s)')
ax.set_title('All Models Comparison')
ax.legend()
ax.grid(True, alpha=0.3)

# 2. Scatter plots for each model
for idx, (name, data) in enumerate(models.items()):
    row = (idx + 1) // 2
    col = (idx + 1) % 2
    ax = axes[row, col]

    ax.scatter(y_true[:len(data['pred'])], data['pred'],
              alpha=0.5, s=20, color=data['color'])

    # Perfect prediction line
    min_val = min(y_true.min(), data['pred'].min())
    max_val = max(y_true.max(), data['pred'].max())
    ax.plot([min_val, max_val], [min_val, max_val], 'k--', alpha=0.5)

    ax.set_xlabel('Observed')
    ax.set_ylabel('Predicted')
    ax.set_title(f'{name} Model')
    ax.grid(True, alpha=0.3)

plt.suptitle('Comprehensive Model Comparison', fontsize=16, fontweight='bold')
plt.tight_layout()
plt.show()

🎯 When to Use ANNs¶

✅ Use ANNs when:¶

You have large datasets (>5000 samples)
Relationships are highly non-linear
Multiple complex interactions exist
High accuracy is more important than interpretability
You have computational resources

❌ Avoid ANNs when:¶

Dataset is small (<1000 samples)
Interpretability is crucial
Quick results are needed
Limited computational resources
Simple relationships exist

📚 Assignment¶

As mentioned in the original notebook, evaluate and visualize model performance over training data as well as test data to check for overfitting:

# Predict on training data
y_train_pred_scaled = model.predict(X_train_scaled)
y_train_pred = y_scaler.inverse_transform(y_train_pred_scaled)
y_train_true = y_scaler.inverse_transform(y_train_scaled.reshape(-1, 1))

# Evaluate training performance
train_results = evaluate_model(y_train_true, y_train_pred)
test_results = evaluate_model(y_true, y_pred)

# Compare
print("Performance Comparison:")
print(f"Training R²: {train_results['R²']:.4f} | Test R²: {test_results['R²']:.4f}")
print(f"Training NSE: {train_results['NSE']:.4f} | Test NSE: {test_results['NSE']:.4f}")

# Check for overfitting
if train_results['R²'] - test_results['R²'] > 0.1:
    print("⚠️ Warning: Model may be overfitting!")

🚀 Next Steps¶

Experiment with different architectures
Try LSTM or GRU for better time series modeling
Implement cross-validation for robust evaluation
Explore Time Series Libraries for advanced models
Apply transfer learning from pre-trained models

📖 Further Reading¶

Multiple Linear Regression

LSTM (Time Series)

Function	Formula	Range	Use Case
ReLU	\(f(x) = max(0, x)\)	[0, ∞)	Hidden layers (default)
Tanh	\(f(x) = tanh(x)\)	[-1, 1]	Hidden layers (centered)
Sigmoid	\(f(x) = 1/(1 + e^{-x})\)	[0, 1]	Binary classification
Linear	\(f(x) = x\)	(-∞, ∞)	Regression output
